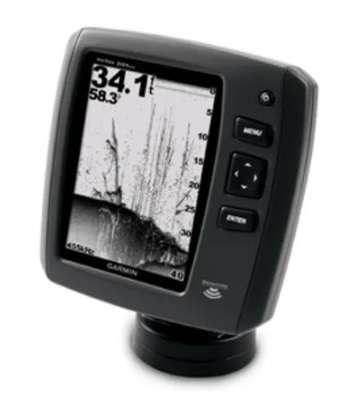

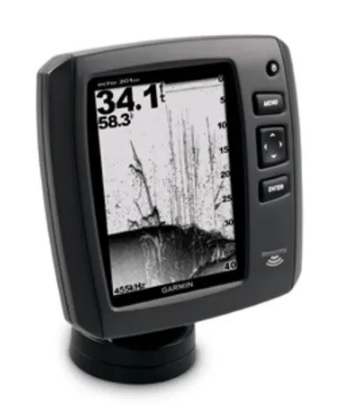

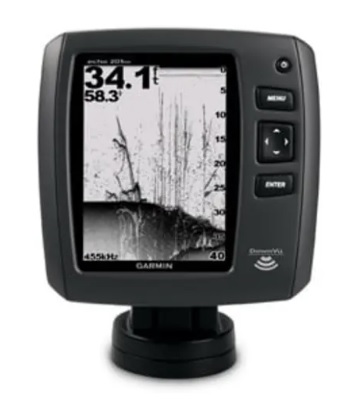

GARMIN ECHO 201DV W/O TRASDUCER

Description

Fishfinding with Garmin ClearVü™ Scanning Sonar

• Garmin ClearVü scanning sonar provides a nearly photographic view of fish and structure under the boat

• All-in-one advanced HD-ID™ and ClearVü transducer (not included in this package)
• 5-inch diagonal, 16-level gray scale display
• Transmit power (RMS)/(Peak-To-Peak): 300 W/2,400 W
• Includes quick-release tilt/swivel mount, transom mount and low-profile trolling motor transducer mounting kits

The powerfully simple 5-inch echo 201dv includes an all-in-one transducer that delivers both advanced HD-ID 77/200 kHz and Garmin ClearVü scanned images simultaneously on a horizontally or vertically split screen.

See excellent target separation and a nearly photographic view of fish with 2,400 W peak-to-peak power, and experience narrow-to-wide viewing cone angles that provide a clear picture down, under the boat, to 1,750 feet maximum¹. Plus, sonar history rewind and Smooth Scaling™ depth-range adjustments allow for seamless transitions from shallow to deep water and back. Includes quick-release tilt/swivel mount plus transom and low-profile trolling motor transducer mounts to make installation a snap.

Specs

• DIMENSION 6″ x 5,9″ x 1,8″ (15,2 x 15 x 4,6 cm)
• WEIGHT 17,6 once (499 g)
• WATERPROOF RATING IPX7
• DISPLAY TYPE 16-level grayscale, HVGA
• DISPLAY SIZE 2.9” x 4.0” (7.4 x 10.16 cm); 5” diag, (12.7 cm)
• DISPLAY RESOLUTION 320 x 480 pixels

Sonar Features

• FREQUENCY 50/77/200 kHz, ClearVü
• TRANSMIT POWER 300 W (RMS)/2,400 W (peak to peak)
• BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
• WATER TEMPERATURE LOG

Fishfinder Features

• SPLIT-SCREEN ZOOM
• FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS)
• AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER; MAXIMIZES TARGETS)
• ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS)
• A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM)
• WATER TEMPERATURE SENSOR INCLUDED
